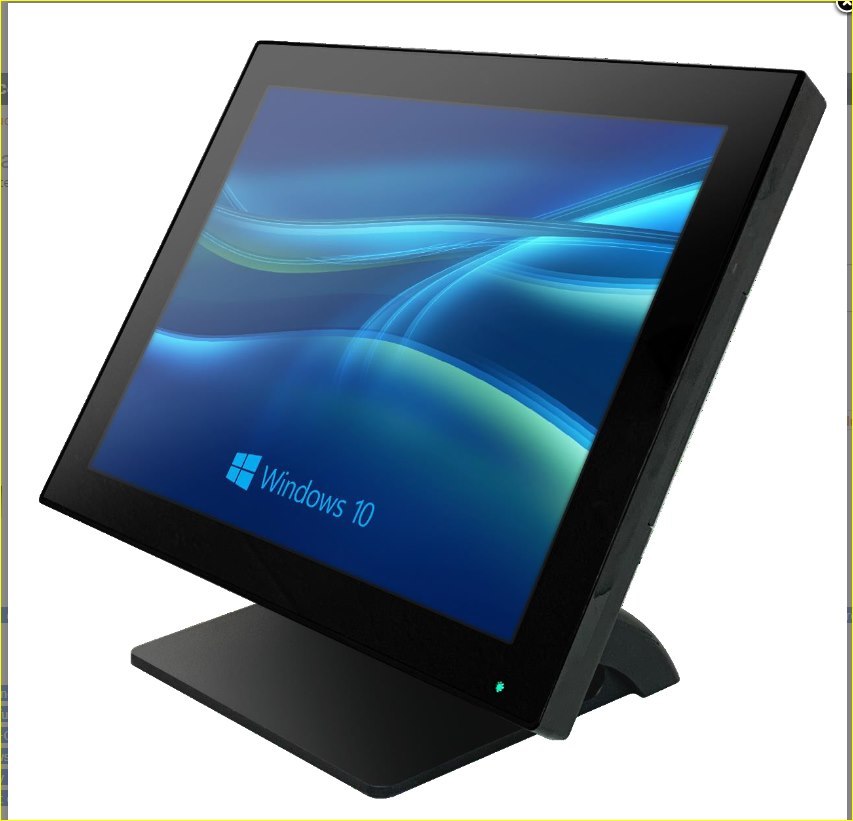

Buy EBN D-POS Dragon 150 Touch POS Terminal 15" Touch POS Terminal - Intel N97 Processor, 8G DDR4 RAM, 128G m-key storage, Windows 10 IoT Ent. 21/H2

EBN D-POS Dragon 150 Touch POS Terminal 15" Touch POS Terminal - Intel N97 Processor, 8G DDR4 RAM, 128G m-key storage, Windows 10 IoT Ent. 21/H2

Part: 1938705
Model: EBN-DPOS150-N97

$1,827.10

Availability

In Stock

Description

The sleek high performance entry level terminal D-POS Dragon 150 is a highly reliable Touch POS Terminal with the performance of the new Intel® N97 (AlderLake-N) processor. Perfect for empowering your business with high performance and sophistication.

The Advantage:

Built with EBN's experience and reliability
One of the most powerful CPU's POS units in Australia at the time of its release
6x USB 3 ports, 2x USB-C ports and 1x HDMI output
Pre-loaded with Windows 10 IoT
Easily upgradable m-key storage and SO-DIMM RAM
Fanless - for quiet/silent operation
VISA mountable

Key Features:

Features Intel® Alder-Lake N97 CPU
15" Capacitive Touch Display
8G DDR4 SO-DIMM Memory (and up to 16GB of RAM)
128G m-key Storage
Stylish front panel that is both water resistant and dust proof
Optional Peripherals: MSR, & 10.1" Second Customer Display
Slim Bezel and Small Foot Print
Window 10 IoT Enterprise 21/H2
Operating system fully installed and configured with License sticker attached
3 Year Warranty

Main Board

Main Board Name	FCBGA
CPU	Alder Lake-N N97(4C/4T) Up to 3.6G
System Memory	DDR4 SO-DIMM x1, Max. up to 16GB with un-buffered and non-ECC type
O.S. Support	Windows 10 / 11 - Windows 10/11 IoT Enterprise (64bit) - Linux kernel 3.0+ & associated distributions

Display

Size	15.1” 4:3 Industrial grade panel
Panel backlight type	LED with 50K hours of life
Brightness	250 nits
Resolution	1024 x 768
Touch Screen	P-cap multi-touch with 7H hardness over lens - 10 Point Touch
Front panel type	True flat bezel free with IP65 compliant
Tilt Angle	15~90°

Storage Device

Interface	m.2 2280 NVME
Storage Capacity	128G

I/O Ports

Serial	COM 1 & 2: RS-232, RJ-50 with convert to DB-9 cable, Pin-9 RI/5V/12V BIOS Selectable
USB	USB 3.0 x 6, USB-C x 2
Cash Drawer	RJ12 x 1, support 12V / 24V DC cash drawer
Audio	2W Speaker x 2
DC-in	19V DC / 3.42A input
LAN	2.5Gigabit Ethernet by RJ-45, support Wake on LAN
Display Port	1x HDMI
Audio-out	3.5mm Stereo Audio Output connector x 1
Remote Power Switch	Rock Power Switch x 1

Physical Dimensions

Dimension ( WxDxH )	359.5mm x 192.9mm x 308.4mm / 14.15" x 7.59" x 12.14"
Net Weight / Gross Weight	TBA

Others

Mounting mechanism	Support VESA Mount
Communication	Wireless LAN module, half size mini PCIe type (Optional)
Expansion Slot	Full size Mini PCIe x 1 Half size Mini PCIe x 1
Colour	Black
Material	Aluminium / ABS
Certifications	CE / FCC / WEEE / RoHS
Ingress Protection	IP65 @ front panel

Environmental Conditions

Storage Temperature	-40~ 85°C (-40~185°F)
Humidity	95% @ 40°C (non-condensing)
Operating Temperature	-With extended temperature SSD/mSATA/RAM/Adapter : -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow -With standard system configurations: 0 ~ 50°C (-32 ~ 122°F) with 0.7m/s air flow
