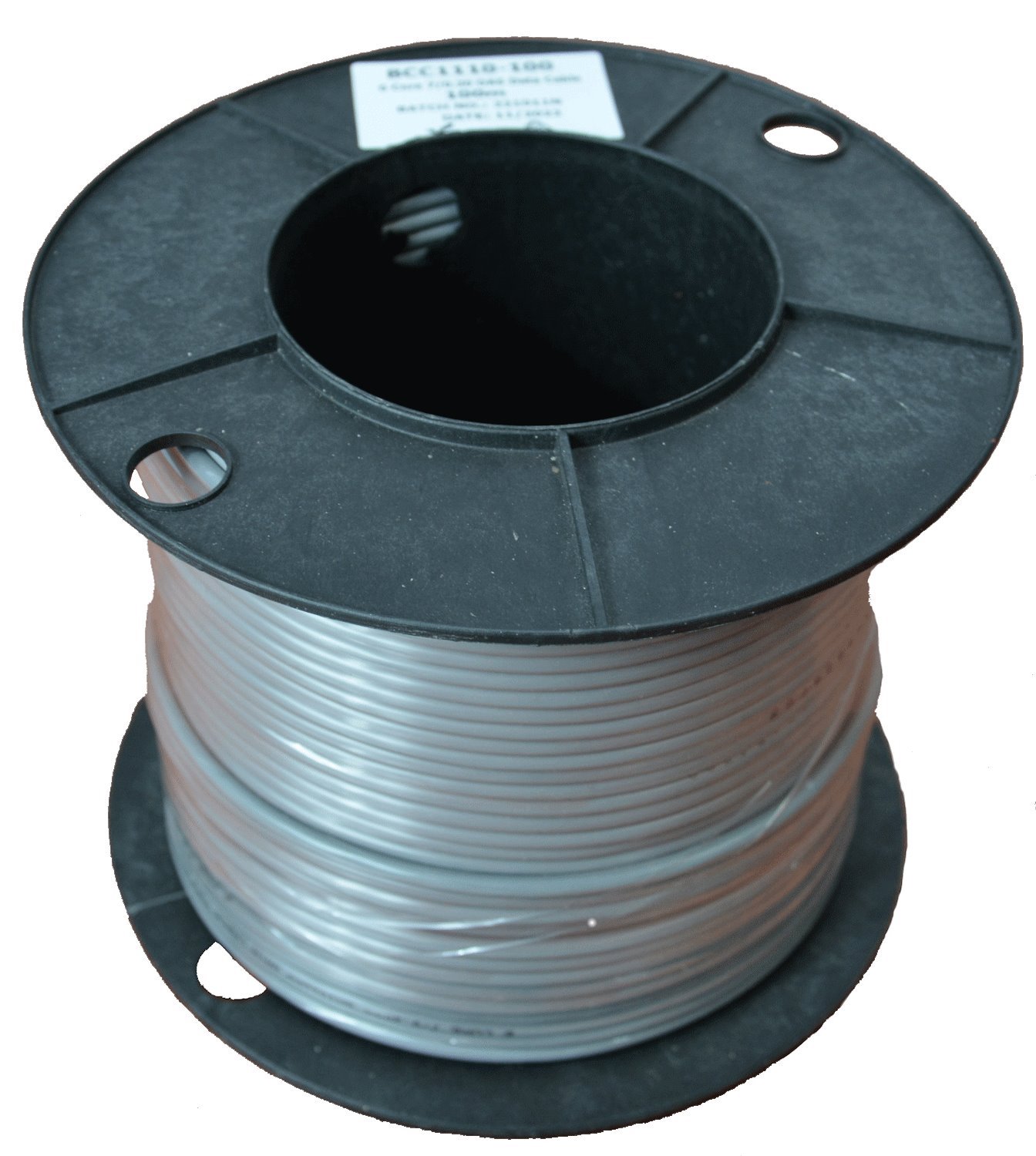

This 250m reel of 6-core overall screened data cable is ideal for connecting serial RS232 and 4-20mA loop circuit data terminals and communication equipment over short distances in unbalanced mode. It features a stranded 24 AWG conductor, polypropylene insulation, and an aluminium polyester laminate foil tape shield with a drain wire to minimise interference. The cable is protected by a flame-retardant, non-migrating PVC jacket.

FEATURES

• 6 Cores
• Overall Shielded to minimise interference
• Flame Retardant PVC Jacket
• Suitable for RS232 and 4-20mA loop circuits

SPECIFICATIONS

• Cable Type: Data Cable
• Conductor Size: 7/0.20mm (24 AWG)
• Number of Cores: 6
• Shielding: Aluminium Polyester Laminate Foil Tape
• Jacket Material: Flame Retardant PVC
• Insulation Material: Polypropylene
• Voltage Rating: 300V
• Typical Applications: Serial RS232 & 4-20Ma loop circuit data terminal & communication equipment
• Length: 250m
• Jacket Colour: Grey

WARRANTY

1-Year Limited Warranty
